Luer Fitting

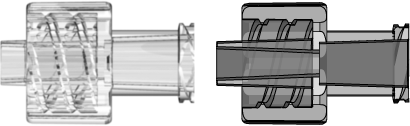

Image of the MTLL240-9 part

MTLL240-9

$0.2948/ea - 1000pcs minimum

Male Luer Integral Lock Ring to 200 Series Barb, 5/32" (4.0 mm) ID Tubing, Clear Polycarbonate

Free Samples
A verified account is required to download 3D models. Please log in or create an account.
A verified account is required to download part drawings. Please log in or create an account.

Polycarbonate (-9, -9002, -9010, -9024)

Regulatory Data Material Data MSDS

-9 Regulatory Data
-9 Material Data
-9 MSDS
Test Method/Material Property ASTM Test Method
Tensile Strength D638 10,000
Elongation at Break, % D638 120
Tensile Yield Strength, psi D638 9,200
Flexural Modulus, kpsi D790 330
Rockwell Hardness D D785 R118
Rockwell Hardness M — M75
Shore Hardness D D2240 N/A
Coef. of Linear 10-5 in/in/°F D696 3.9
Deflection Temp °F @264psi D648 266
Deflection Temp °F @66psi D648 273
Water Absorption, %, 24 h D570 0.15
Izod Impact, (Notched) ft-lb/in D256 16.0
Sterilization Stability
Gamma Radiation Compatible up to 10 Mrads with minor loss of physical properties; will discolor to yellow-gree hue
Ethylene Oxide (EtO) Highly Compatible
Autoclave Poor; may craze or stress crack due to molding stresses
Chemical % Temperature° C Temperature° F Recommendation
Acetic Acid 5% 23° C 73° F Satisfactory
Acetone 100% 50° C 122° F Unsatisfactory
Acetophenone 100% 24° C 75° F N/A
Acetylene 100% 24° C 75° F N/A
Air 100% 82° C 180° F N/A
Ammonia, Liquid 100% 24° C 75° F Unsatisfactory
Ammonium Hydroxide 10% 23° C 73° F Unsatisfactory
Ammonium Hydroxide 10% 70° C 158° F Unsatisfactory
Barium Sulfide 100% 24° C 75° F N/A
Benzene 100% 23° C 73° F Unsatisfactory
Bleach 100% 23° C 73° F Unsatisfactory
Boric Acid 7% 35° C 95° F Excellent
Calcium Carbonate Sat. sol. 24° C 75° F N/A
Carbon Dioxide 100% 50° C 122° F N/A
Carbon Monoxide 100% 50° C 122° F N/A
Carbon Tetrachloride 100% 50° C 122° F Unsatisfactory
Chlorine Water Dilute 23° C 73° F Unsatisfactory
Chlorine Water Concen. 23° C 73° F Unsatisfactory
Chlorobenzene 100% 23° C 73° F Unsatisfactory
Chlorofluorocarbon 11 100% 24° C 75° F Satisfactory
Chloroform 100% 23° C 73° F Unsatisfactory
Cyclohexanone 100% 24° C 75° F Unsatisfactory
Dichlorethylene 100% 23° C 73° F N/A
Ethanol 95% 50° C 122° F Satisfactory
Ethyl Acetate 95% 50° C 122° F Unsatisfactory
Ethylene Glycol 100% 23° C 73° F Satisfactory
Ethylene Oxide 100% 24° C 75° F Satisfactory
Ethylene Oxide 100% 79° C 175° F Satisfactory
Fatty Acids — — — Satisfactory
Fluorine 100% 23° C 73° F N/A
Formaldehyde 37% 24° C 75° F Unsatisfactory
Gasoline 100% 85° C 185° F Unsatisfactory
Glucose Concen. 24° C 75° F N/A
Glycerin 100% 24° C 75° F Excellent
Hydrochloric Acid 2% 23° C 73° F Excellent
Hydrochloric Acid 10% 25° C 77° F Excellent
Hydrofluoric Acid 10% 23° C 73° F N/A
Hydrogen Peroxide 1% 24° C 75° F Excellent
Hydrogen Peroxide 5% 43° C 110° F Excellent
Isopropanol 70% 23° C 73° F Call
Kerosene 100% 85° C 185° F Satisfactory
Methyl Ethyl Ketone 100% 50° C 122° F Unsatisfactory
Methylene Chloride 100% 23° C 73° F Unsatisfactory
Methanol 100% 23° C 73° F Satisfactory
Nitric Acid 10% 23° C 73° F Unsatisfactory
Oxygen 100% 24° C 75° F N/A
Ozone 100% 43° C 110° F Unsatisfactory
Phenol 90% 23° C 73° F N/A
Phosphoric Acid 5% 98° C 208° F Unsatisfactory
Propane 100% 23° C 73° F N/A
Sodium Bicarbonate Concen. 24° C 75° F N/A
Sodium Chloride 10% 23° C 73° F N/A
Sodium Chloride Sat. sol. 24° C 75° F N/A
Sodium Hydroxide 10% 70° C 158° F N/A
Steam — 120° C 248° F Unsatisfactory
Sulfuric Acid 30% 23° C 73° F Excellent
Tetrahydrofuran 100% 23° C 73° F N/A
Toluene 100% 50° C 122° F Unsatisfactory
Trichloroethylene 100% 23° C 73° F Unsatisfactory
Water 100% 79° C 175° F Unsatisfactory
