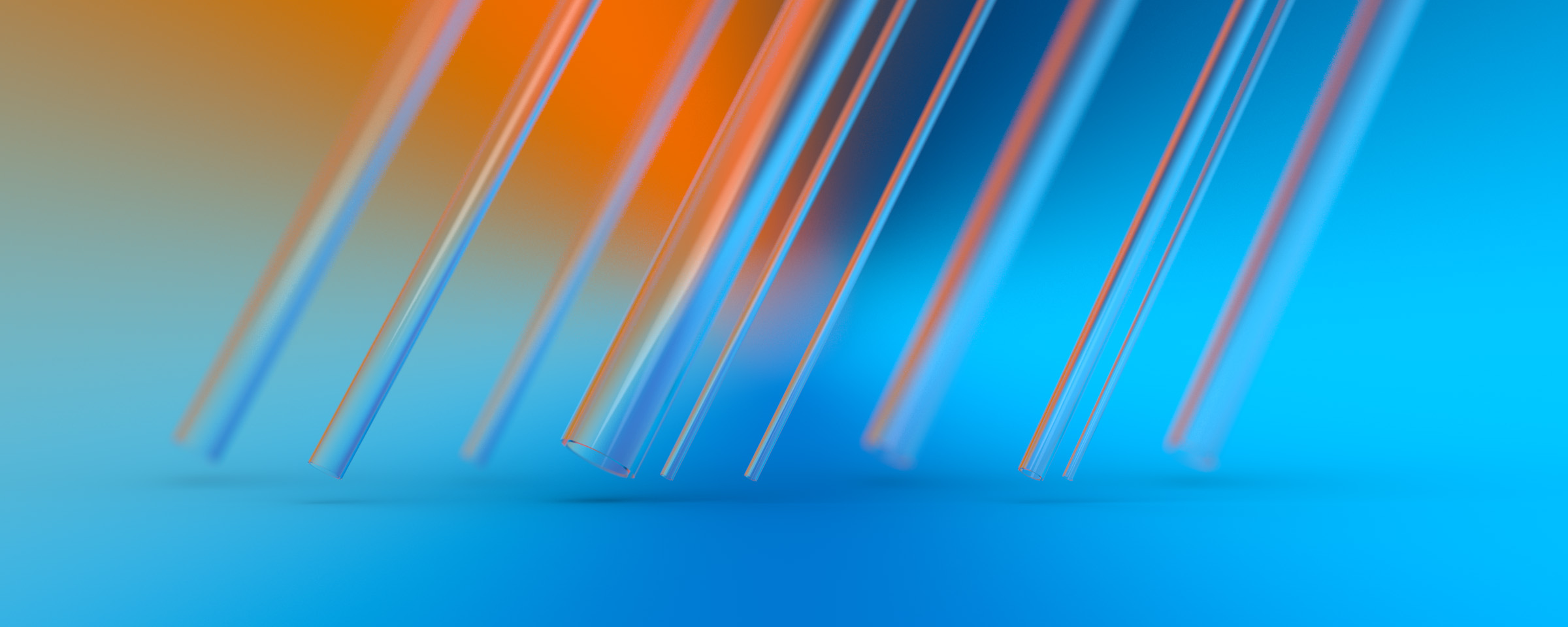

FEP Heat Shrink Tubing in multiple colors

FEP Heat Shrink Tubing

High-Quality FEP Heat Shrink Tubing

Nordson MEDICAL's FEP heat shrink tubing is a high-performance material specifically designed for demanding catheter reflow medical device applications. Its exceptional heat and chemical resistance make it ideal for various manufacturing processes, including autoclaving and cleaning. The chemical structure of FEP allows for easier processing while maintaining its superior properties, ensuring durability, reliability, and compliance with medical device standards.

Visit Online Store

Our FEP heat shrink tubing is available in two standard sizes with shrink ratios of 1.3:1 and 1.6:1. For more specialized applications, we offer custom sizes with shrink ratios up to 1.8:1. All of our tubing is manufactured using a silicone-free process, ensuring superior performance and cleanliness. It has a heat resistance of up to 450°F, making it ideal for catheter reflow applications. Our high-performance FEP heat shrink tubing is chemically resistant, melt-processable, and offers excellent dielectric properties and surface lubricity. With specifications such as recovered IDs ranging from 0.020" to 0.300", wall thicknesses down to 0.0025", and lengths up to 82", our FEP heat shrink tubing can be tailored to your needs.

Order FEP Heat Shrink Tubing Online

Nordson MEDICAL's high-quality FEP heat shrink tubing is now available in our online store, with expedited lead times. To better serve you, we've expanded our production capabilities and are offering one-week lead times on all FEP heat shrink tubing web orders.

expanded and recovered heat shrink

Features & Benefits

Nordson MEDICAL engineers around optimal functionality. Our FEP heat shrink tubing is tailored to your exact requirements. Features and benefits of our FEP heat shrink tubing include:

  • Heat-resistant up to 450°F, ensuring durability and minimizing the need for frequent replacements
  • Enhanced surface lubricity and anti-adhesive properties to ensure effortless installation, facilitate easy removal, and extend component lifespan without contamination
  • Silicone-free manufacturing process to avoid cross-contamination and improve product quality
  • Customizable sizes to tailor our solutions to your needs
  • Exceptional transparency for clear visability of medical components and unobstructed light transmission during procedures
  • Low longitudinal shrinkage to avoid the need to constrain the ends

Contact us to discuss your needs.

Contact Us

Tailored to Your Exact Needs

  • Maximum expanded ID: 0.400"
  • Recovered ID limits: 0.020"-0.300"
  • Recovered wall thickness: 0.0025"-0.015"
  • Upper service temperature: 399°F (204°C)
  • Shrink temperature: 410°F (210°C)
  • Custom shrink ratios up to 1.8:1
  • Longitudinal shrinkage: typically <5%
  • Length of tubing: 36"-82"
  • Custom lengths below 36" upon request
  • Melt recovery temperature: 425°F (218°C)
  • Melting point: 500°F (260°C)

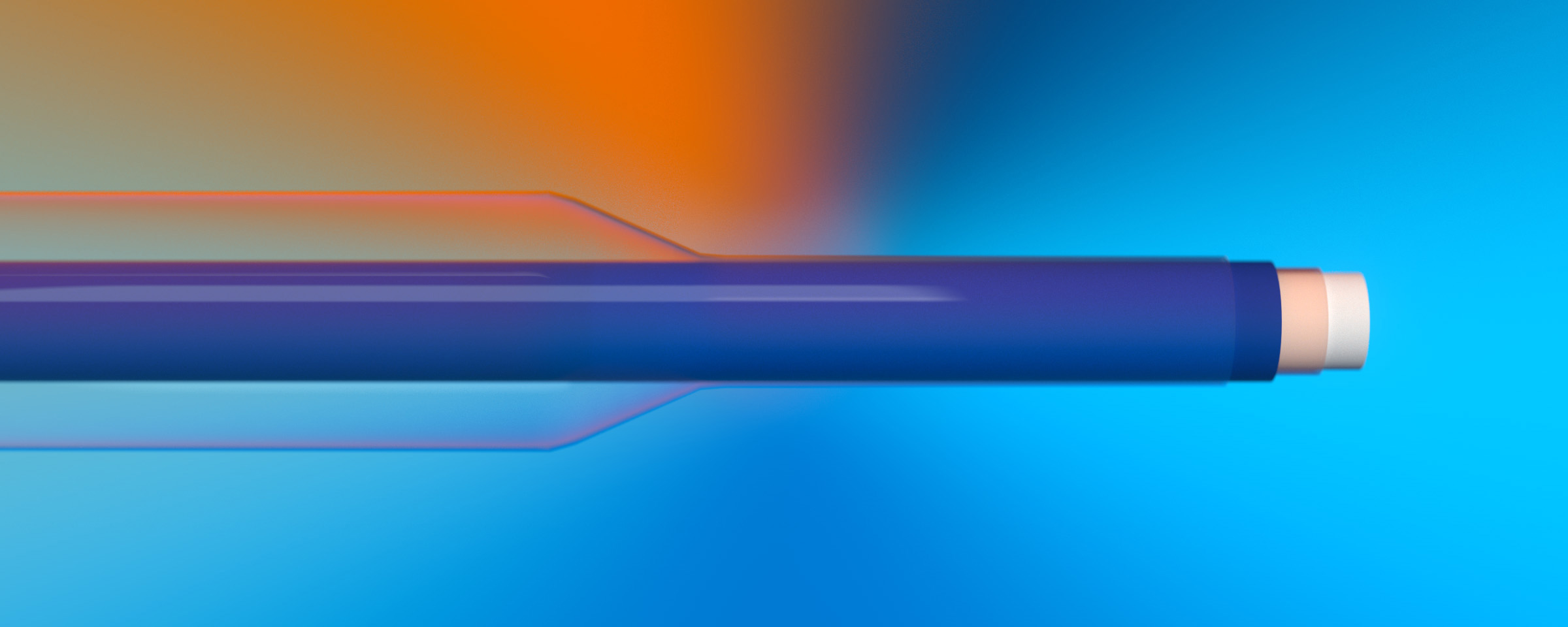

FEP heat shrink tubing under braided tubing

Technical Information

Find mechanical, thermal, and electrical specifications for FEP heat shrink tubing.

Learn More
