Luers

Luer Fittings

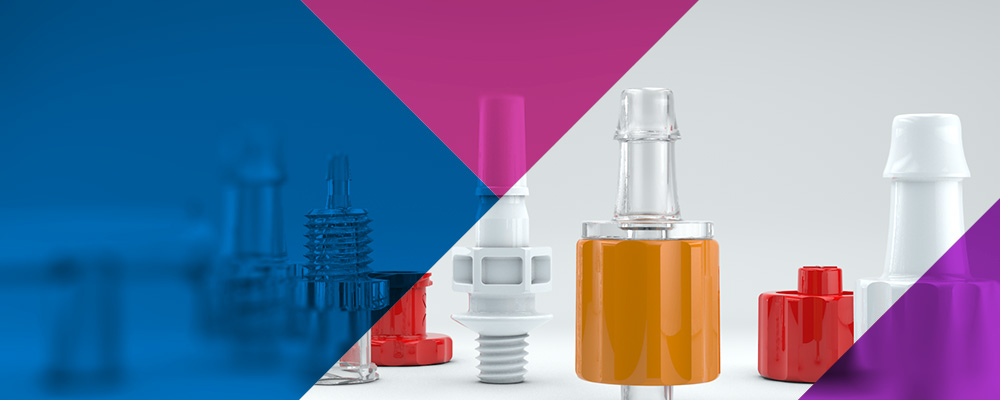

Nordson MEDICAL offers designers worldwide the broadest selection of male luer and female luer fittings and connectors, luer adapters and luer accessories. Over 120 separate luer configurations are offered in nylon, polypropylene, polycarbonate and PVDF, with many color and special material options available from stock or upon special order. Our male luers and female luers are available with tubing connections that fit many tubing materials ranging from 1/16" (1.6 mm) to 1/4" (6.4 mm) IDs, with threaded ends and panel mount versions also available.

Nordson MEDICAL's luer fittings, luer adapters, and luer accessories are part of a standardized system of small-scale tubing connectors used to make secure leak-proof unions in medical devices and laboratory instruments. The special 6% of a luer fitting provides a unique secure friction seal appropriate for gas and fluid connections. The Nordson MEDICAL barb (on luer fittings featuring a barbed tubing connection) has no parting lines on the barb to ensure a leak-free tubing union.

Broadest Luer Selection Online

Our Online Store offers the broadest selection of luer fittings and connectors, luer adapters, and luer accessories in the industry.

  • 120+ luer configurations
  • Available in nylon, polypropylene, polycarbonate, polyvinylidene fluoride (PVDF), and other materials by special order
  • Many color options
  • Tubing connections ranging from 1/16" (1.6 mm) to 1/4" (6.4 mm) IDs
  • Threaded ends and panel-mount versions
  • Conform to ISO-594-1 and ISO 594-2 standards
Visit Online Store

Luer Locks & Luer Slips

The two main categories of luer fittings are luer locks and luer slips:

  • Luer-lock connectors (female) are joined by means of a tabbed hub on the female fitting that screws into threads in a sleeve on the male fitting and attaches securely. Male luer lock connectors are available with integral lock rings or with rotatable features to allow you to position the tubing before assembly. This locking mechanism is used for applications that require a secure connection.
Visit Online Store
  • Luer-slip connectors simply conform to luer taper dimensions and are pressed together and held by friction (they have no threads). This mechanism is used for applications such as priming and flushing.
Visit Online Store

ISO 594-1 and ISO 594-2 Standard Luers

All Nordson MEDICAL luer locks, luer adapters and luer accessories are made to the ISO-594-1 and ISO 594-2 standards, and may be connected to other luer fittings meeting these ISO standards. Please test your application to verify the performance of the interconnection.

Luer Tapers

The 6% tapered cone luer standard was developed in 1896. The first standard for luer applications for plastic products was published in 1955. Because the standard is understood worldwide and results in economical, reliable and inexpensive components, it is employed in thousands of medical devices worldwide.

Nordson MEDICAL luer tapers are made to the ISO 594-1 standard, and may be connected to other luers meeting ISO standards.

If your application requires mating components from multiple suppliers, please test your application to verify the performance of the interconnection as other manufacturers' products may not meet the international standard.


Integral Lock Ring

Luer Fittings Integral Lock Ring

Male luer integral lock ring with 1/16" to 1/4" tubing ID.

Female Luer-to-Barb

Luer Fittings Female Luer-to-Barb

Female luer lug and thread styles to classic series barb. 1/16" to 1/4".

Plug

Luer Fittings Plug

Female thread plugs, male plugs, male lock ring plugs, slip plugs, and vented plugs.

Cap

Luer Fittings Cap

Female thread style caps and lug style caps.

Slip (Rotating)

Luer Fittings Slip - Rotating

Male luers with 1/16" to 1/4" tubing ID that can be used with rotating lock rings.

Lock Ring

Luer Fittings Lock Ring

Finger snap and rotating luer lock rings.

Slip (Stationary)

Luer Fittings Slip - Stationary

Male luers with 1/16" to 1/4" tubing ID that can be used with stationary lock rings.

Slip Luer-to-Barb

Luer Fittings Slip Luer-to-Barb

Male luer slip to barb with 1/16" to 1/4" tubing ID.

Male Luer-to-Barb Elbow

Luer Fittings Male Luer-to-Barb Elbow

Male luer elbow to barb that can be used to rotating lock rings.

Male Luer-to-Thread

Luer Fittings Male Luer-to-Thread

Male luers with hex to NPT threads, UNF threads, or special tapered threads.

Female Luer-to-Thread

Luer Fittings Female Luer-to-Thread

Female luers in threaded or lug styles to NPT, UNF, or special tapered threads.

Panel Mount

Luer Fittings Panel Mount

Panel mounts in female luer lug styles, thread styles, and male luer styles.

Coupler

Luer Fittings Coupler

Male and female couplers and male luer to female luer thread style couplers.

Adapter

Luer Fittings Adapter

Elbows and tees with male and female options and configurations.

Elbow

Luer Fittings Elbow

Male luer to barb elbow with 1/8" tubing ID.

Male Luer

Luer Fittings Male Luer

Male luers to barbs or bondable sockets.
