BioProcessing Fittings Manifolds

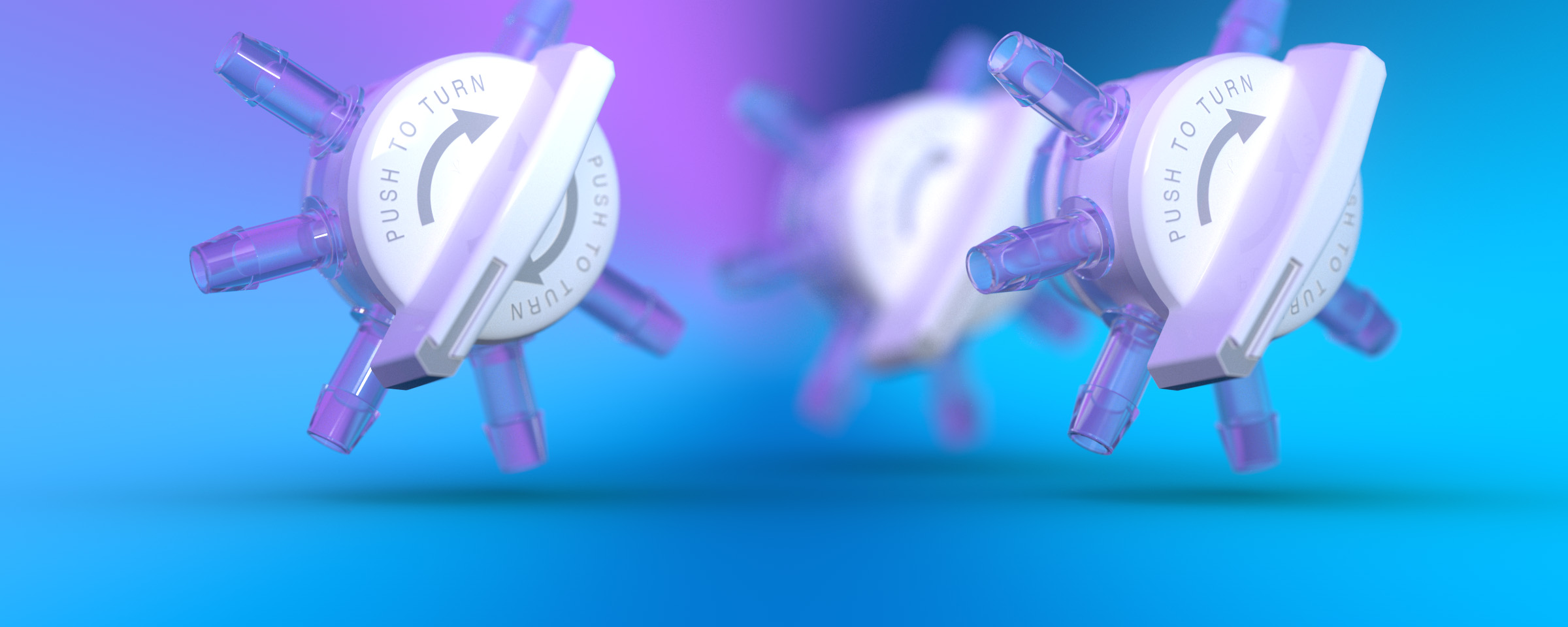

CYLINDRAFlow™ Manifolds

The First SUS Multiport Manifold on the Market

Nordson MEDICAL is proud to introduce the first all-in-one manifold for pharmaceutical and single-use biopharmaceutical fluid transfer applications. The revolutionary design of this patent-pending, compact fitting not only saves space, but also simplifies use and assembly. With five ports available in one component, gone are the many leak points found in traditional stopcock and Y connector manifolds. Ideal for downstream processing, multiple bags can easily be filled from one large bag. Flow is consistent as it travels around the inner body of the part, maintaining a steady pressure. The large flow selector is effortless to turn, and the lock-in-place feature gives you assurance that you are utilizing the desired port.

CYLINDRAFlow Manifold Clamps

Introducing the CYLINDRAFlow™ Clamp

Nordson MEDICAL is proud to introduce the reusable CYLINDRAFlow™ clamp — specifically designed to rigid mount CYLINDRAFlow™ manifolds to any table or skid in clean room applications — improving its accessibility and ease of use.

The CYLINDRAFlow™ clamp — manufactured by our partners at Rocky Mountain Waterjet and Laser — is made from corrosion-resistant stainless steel, features a cutaway collar design for increased control, and a swing handle for tightening force control. The grooved inner collar surface of the clamp prevents the CYLINDRAFlow™ manifold from slipping or turning, and the textured swing handle provides a secure grip — allowing operators to use the CYLINDRAFlow™ manifold with one hand.

The CYLINDRAFlow™ clamp is currently being sold by our partners at Rocky Mountain Waterjet and Laser in Greeley, Colorado.

CYLINDRAFlow™ Manifolds Simplify Processing Applications

Simplify assembly and operation in your pharmaceutical and single-use biopharmaceutical fluid transfer applications with Nordson MEDICAL's new patent-pending manifold. The first multiport manifold on the market, CYLINDRAFlow™ features a one-to-one relationship between the inlet port and the five available outlet ports. The large flow selector firmly turns and locks in place with a clearly marked arrow assuring you that the flow path is set up correctly.

Contact a Customer Service rep at 1-888-404-5837 to learn more about how CYLINDRAFlow™ can simplify your processing applications.

Features & Benefits

  • Can accommodate up to 5 fluid lines
  • Flow restricted to one port at a time
  • No pressure drop as fluid moves around and through the ports
  • Intuitive push-to-turn flow selector
  • Easier to use and fewer leak points than stopcock and Y connector manifolds
  • Leak tested for use in low pressure applications less than 15 psi
  • Materials meet USP Class VI & ISO 10993 criteria
  • Gamma radiation stable
  • Can be daisy chained for additional ports
  • Arrows to provide a clear indication of how to turn the flow selector and which port is in use
  • Etched data code for easy access to product resources and material information
Visit Online Store

CYLINDRAFlow™ Manifolds Technical Information

Materials
  • Body & Flow Selector
    • Gamma Stable Polycarbonate
  • Internal Spring
    • 316 Stainless Steel
  • Gasket
    • Platinum-Cured Silicone
Fits Tubing IDs
  • 3/8" (9.5 mm)
Operating Pressure
  • 15 psi (1.0 bar) Liquid Rated
Barb Size
  • 600 Series
Manifolds Information
