FibriJet Biomaterial Applicators and Tips

FibriJet Biomaterial Applicators and Tips

FibriJet® biomaterial applicators and tips are used to accurately control and dispense biomaterial including tissue sealant, hemostats, and concentrated plasma gel to control bleeding, healing wounds, and other related medical procedures. Single and dual syringe applicators and an extensive line of interchangeable tips meet the particular needs of specific surgical procedures. FibriJet® products dispense a single material or simultaneously dispense two materials to a localized treatment site with simple, one-handed operation.

Applicator Assemblies (Dual Syringe)

Each sterile applicator assembly consists of two syringes, one syringe holder, and one plunger link. Applicator tips to deliver the biomaterial to a surgical treatment site are sold separately. All applicator (dual syringe) assemblies are compatible with FibriJet applicator tips unless specifically noted otherwise.

11:1 Ratio

These applicator assemblies allow controlled, simultaneous application of two materials in an 11:1 ratio.

FibriJet SA-1001

SA-1001
Ratio Applicator Assembly, 11:1 Ratio
10 Per Box

1:1 Ratio

These applicator assemblies allow controlled, simultaneous application of two materials in a 1:1 ratio.

FibriJet SA-3303

SA-3303
3cc Applicator Assembly, 1:1 Ratio
10 Per Box

FibriJet SA-3305

SA-3305
5cc Applicator Assembly, 1:1 Ratio
10 Per Box

FibriJet SA-3310

SA-3310
10cc Applicator Assembly, 1:1 Ratio
10 Per Box

Single Component Applicator Mixing Tips

Tips are designed for low viscosity materials that may require extended mixing. Longer length enables access to hard-to-reach treatment sites. The tips can be combined with the SA-3670 blending connector for added versatility.

FibriJet SA-3646

SA-3646
Single Channel Mixing Tip, Angled 45°, Low Viscosity
15 cm, Stream Output
Compatible with SA-3670 (sold separately)
10 Per Box

Single Component Applicator Spray Tips

Designed to spray biomaterials to open-field, topical, or endoscopic treatment sites. Single spray tips conveniently secure to a standard luer-type syringe. Single cannula extended applicator tips are available in 10 cm, 20 cm, and 30 cm lengths. Includes one single cannula extended applicator tip, tip alignment tool, and two spray tips.

FibriJet SA-3647

SA-3647
Single Cannula, Extended, 15° Angle Tip
10 cm, Markings to 9 cm, Fine Spray Output
5 Per Box

FibriJet SA-3648

SA-3648
Single Cannula, Extended
20 cm, Fine Spray Output
5 Per Box

FibriJet SA-3649

SA-3649
Endoscopic, Single Cannula, Extended
30 cm, Fine Spray Output
5 Per Box

Dual Component Applicator Tips

Endoscopic/
Laparoscopic Spray Tips

The variety of designs offers surgeons the best instrument choice for the procedure, and the luer lock system prevents accidental dislodging of applicator tips. Dual cannula styles are designed to resist clogging. Tips fit all standard FibriJet Applicator Syringe Assemblies (sold separately) unless specifically noted otherwise. All endoscopic tips are designed for use with 5 mm laparoscopic trocars.

Flexible 360° Gas-Assisted Tip

This unique tip facilitates the application of two liquid biomaterials to laparoscopic and hard-to-reach surgical sites. The tip can spray in any direction and applies a thin layer of combined materials. The sterile set includes an endoscopic applicator tip, tear apart tubing for gas inlet and vent tubing with filters. NOTE: Tip is fixed (not-replaceable) for the SA-3668. A FibriJet vented CO2 gas regulator (i.e., SA-6045) is also required (sold separately).

FibriJet SA-3668

SA-3668
Endoscopic, 360° Gas Assisted Spray Set
35 cm, Sprays in any direction, Fine Spray Output
5 Per Box

Rigid Dual Cannula Gas-Assisted Tips (1:1 Ratio)

Gas-Assisted Endoscopic tips mix and dispense a thin layer of combined materials to endoscopic treatment sites. Sets include an endoscopic applicator tip, tear-apart gas inlet and vent tubing with filters, tip alignment tool, and two spray tips. A FibriJet vented CO2 gas regulator (i.e., SA-6045) is also required (sold separately). Extra spray tips are also available (sold separately as SA-3659). Sets come in a 1:1 ratio design.

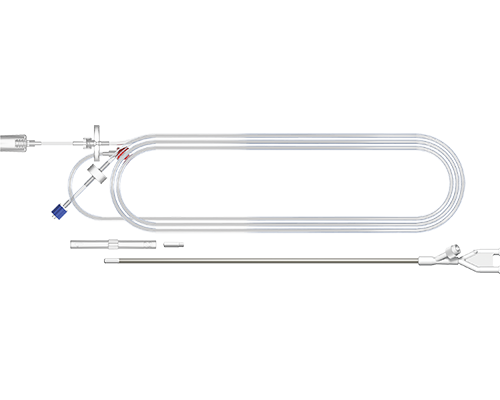

FibriJet SA-3654

SA-3654
Endoscopic, Gas Assisted Spray Set, 1:1 Ratio
30 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

FibriJet SA-3655

SA-3655
Endoscopic, Gas Assisted Spray Set, 1:1 Ratio
40 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

Rigid Dual Cannula Gas-Assisted Tips (11:1 Ratio)

Gas-Assisted Endoscopic tips mix and dispense a thin layer of combined materials to endoscopic treatment sites. Sets include an endoscopic applicator tip, tear-apart gas inlet and vent tubing with filters, tip alignment tool, and two spray tips. A FibriJet vented CO2 gas regulator (i.e., SA-6045) is also required (sold separately). Extra spray tips are also available (sold separately as SA-3659). Sets come in an 11:1 ratio design.

FibriJet SA-3657

SA-3657
Endoscopic, Applicator with Mixing Tip, 11:1 Ratio
30 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

FibriJet SA-3658

SA-3658
Endoscopic, Applicator with Mixing Tip, 11:1 Ratio
40 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

Rigid Manual Spray Tips (1:1 Ratio)

Tips mix and dispense a thin layer of combined materials to endoscopic treatment sites. Sets include an endoscopic applicator tip, tip alignment tool, and two spray tips. Extra spray tips are available (sold separately as SA-3659). Sets come in a 1:1 ratio design.

FibriJet SA-3662

SA-3662
Endoscopic, Applicator with Mixing Tip, 1:1 Ratio
30 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

Rigid Manual Spray Tips (11:1 Ratio)

Tips mix and dispense a thin layer of combined materials to endoscopic treatment sites. Sets include an endoscopic applicator tip, tip alignment tool, and two spray tips. Extra spray tips are available (sold separately as SA-3659). Sets come in an 11:1 ratio design.

FibriJet SA-3664

SA-3664
Endoscopic, Applicator with Mixing Tip, 11:1 Ratio
20 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

FibriJet SA-3667

SA-3667
Endoscopic, Applicator with Mixing Tip, 11:1 Ratio
40 cm, Fine Spray Output
Includes tip alignment tool and two spray tips
5 Per Box

Endoscopic/Laparoscopic Stream Tips

The variety of designs offers surgeons the best instrument choice for the procedure, and the luer lock system prevents accidental dislodging of applicator tips. Dual cannula styles are designed to resist clogging. Tips fit all standard FibriJet Applicator Syringe Assemblies (sold separately) unless specifically noted otherwise. All endoscopic tips are designed for use with 5 mm laparoscopic trocars.

Malleable Dual Cannula Stream Tips

Tip is designed to facilitate the mixing and application of dual component biomaterials by isolating the components until they passively mix at the treatment site. The malleable metal shaft can be bent or shaped to the surgeon's preference.

FibriJet SA-3620

SA-3620
Endoscopic, Dual Cannula, Malleable
20 ga x 26 cm (10.25 in), Stream Output
10 Per Box

Semi-Flexible Dual Cannula Stream Tips

Featuring a smooth atraumatic tip and semi-flexible shaft, this tip is for use in endoscopic and tunneling procedures.

FibriJet SA-3650

SA-3650
Endoscopic, Dual Cannula Semi-Flexible
32 cm, Stream Output
10 Per Box

Topical/Open-Field/Shallow Spray Tips

Offer maximum versatility by providing multiple options for spraying an assortment of materials to topical or open-field procedures. Fit all standard FibriJet applicator assemblies (sold separately) unless specifically noted otherwise. This tip is designed to apply two liquids simultaneously to a treatment site. FibriJet spray tips allow for the controlled, simultaneous application of two biomaterials in 11:1 or 1:1 ratios to a treatment site with simple, one-handed operation.

Manual Spray Tips

Mix and disperse combined materials in a thin layer to a topical, open-field, or shallow treatment site. The spray output is adjustable from coarse to fine droplet size.

FibriJet SA-3660

SA-3660
Topical, Dual Spray Tip
Also available with an 11:1 syringe included (SA-1060) or as part of a procedure kit (SA-4460)
10 Per Box

FibriJet SA-1060

SA-1060
Applicator with Dual Spray Tips, 11:1 Ratio
11:1 dual syringe and topical dual spray tip included
10 Per Box

FibriJet SA-3674

SA-3674
Blending Connector with Single Spray Tip
Includes two spray tips per device
Additional replacement spray tips also available (SA-3671 and SA-3671-100)
10 Per Box

FibriJet SA-3675

SA-3675
Topical, Mixing Applicator with Spray Tip
Includes one spray tip, Low Viscosity
3 cm, Conical Spray Output
10 Per Box

Gas-Assisted Spray Tips

Mix and disperse combined materials in a thin layer to a topical, open-field, or shallow treatment site. Intended for use with inert gases only. The spray output is adjustable from coarse to fine droplet size in the gas-assisted spray sets. Sets include a spray tip and gas inlet tubing with a sterile filter. The non-vented/topical gas regulators are required (sold separately).

FibriJet SA-3651

SA-3651
Topical, Gas Assisted Spray Set, Procedure Kit
Designed to be a clog resistant spray tip. Also available as part of a procedure kit (SA-6111).
5 Per Box

FibriJet SA-3652

SA-3652
Topical, Gas Assisted Mix and Spray Set
Includes tip alignment tool and two spray tips
5 Per Box

Topical/Open-Field/Shallow Stream Tips

Offer maximum versatility by providing multiple options for spraying an assortment of materials to topical or openfield procedures. Fit all standard FibriJet applicator assemblies (sold separately) unless specifically noted otherwise. A variety of tips designed to facilitate blending or mixing of dual component biomaterials. All tips dispense in a stream.

FibriJet SA-3670

SA-3670
Blending Connector
Compatible with SA-3646, SA-3671, and SA-3671-100
10 Per Box

FibriJet SA-3673

SA-3673
Blending Connector with Single Flexible Cannula
18 ga x 5 cm
10 Per Box

FibriJet SA-3690

SA-3690
Single Cannula, Wire-Reinforced, Malleable
(.125 in) ID x 14 cm (5.51 in)
10 Per Box

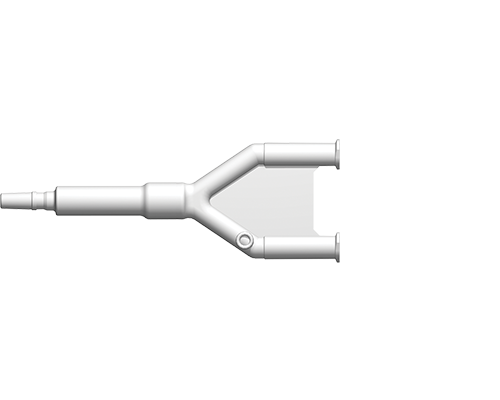

FibriJet SA-3677

SA-3677
Mixing Applicator Tip, High Viscosity
3 cm, Stream Output
10 Per Box

FibriJet SA-3678

SA-3678
Blending Connector with Mixer, Low Viscosity
10 cm
Compatible with SA-3671 and SA-3671-100 (sold separately)
10 Per Box

Topical/Open-Field/Shallow Dual Cannula Stream Tips

Designed to facilitate the mixing and application of dual component biomaterials by isolating the components until they passively mix at the treatment site. The malleable metal shaft on these tips can be bent or shaped for better access to the treatment site. The dual channel is designed to resist clogging. Multiple lengths and gauges accommodate a variety of treatment sites. Tips dispense in a stream.

FibriJet SA-3600

SA-3600
Dual Cannula, Malleable
16 ga x 10 cm (4 in), Stream Output
10 Per Box

FibriJet SA-3605

SA-3605
Dual Cannula, Malleable
26 ga x 6 cm (2 in), Stream Output
10 Per Box

FibriJet SA-3610

SA-3610
Dual Cannula, Malleable
26 ga x 8 cm (3 in), Stream Output
10 Per Box

FibriJet SA-3615

SA-3615
Dual Cannula, Malleable
20 ga x 5 cm (2 in), Stream Output
10 Per Box

FibriJet SA-3618

SA-3618
Dual Cannula, Malleable
20 ga x 10 cm (4 in), Stream Output
10 Per Box

FibriJet SA-3619

SA-3619
Dual Cannula, Malleable
20 ga x 18 cm (7 in), Stream Output
10 Per Box

FibriJet SA-3625

SA-3625
Dual Cannula, Malleable
20 ga x 9.7 cm (3.8 in), Stream Output
Narrower than FibriJet's standard center-to-center dual syringe spacing.
*Not compatible with FibriJet syringe assemblies.
Contact a Nordson MEDICAL Sales Representative for dual syringe compatibility information.
10 Per Box

FibriJet SA-3626

SA-3626
Dual Cannula, Malleable
20 ga x 17.4 cm (6.8 in), Stream Output
Narrower than FibriJet's standard center-to-center dual syringe spacing.
*Not compatible with FibriJet syringe assemblies.
Contact a Nordson MEDICAL Sales Representative for dual syringe compatibility information.
10 Per Box

Other Applicator Tips/Accessories

Single Component Spray Tips

Tips easily attach to any luer-style syringe to spray liquid.

FibriJet SA-3671

SA-3671
Topical, Single Spray Tip
Conical Spray Output
10 Per Box

FibriJet SA-3671-100

SA-3671-100
Topical, Single Spray Tip (Box of 100)
Conical Spray Output
100 Per Box

Endoscopic Catheter Introducer

Designed to aid in the insertion of a device into a body cavity. Not intended for introduction into blood vessels.

FibriJet SA-3445

SA-3445
Endoscopic Catheter Introducer
40 cm
3 Per Box

Tip Alignment Tool with Two Replacement Tips

Additional replacement spray tips that are compatible with many FibriJet products (listed below). Includes a tip alignment tool and two spray tips per pouch.

FibriJet SA-3659

SA-3659
Tip Alignment Tool with Two Spray Tips
Additional replacement tips for: SA-3647, SA-3648, SA-3649, SA-3662, SA-3664, SA-3667, SA-3654, SA-3655, SA-3657, SA-3658, SA-3652
10 Pouches (20 Spray Tips) Per Box

Vented/Endoscopic Regulators

FibriJet Vented Regulators are designed for use with our endoscopic gas-assist biomaterial applicators. FibriJet Vented Regulators control flow of medical grade CO2 for applying materials in endoscopic surgical procedures. Designed for use with insufflators, the patient vent allows for gas escape at the same rate as gas entry. The instrument panel is easy to read. Quick connect luer fittings ensure correct setup. The foot pedal allows for easy on/off of gas flow during procedures. Device includes an adjustable pole clamp, so the device can be used on multiple surfaces.

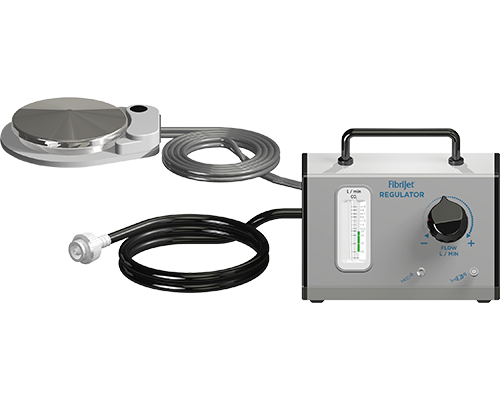

FibriJet SA-6045

SA-6045
FibriJet Vented CO2 Regulator with Vent and Pole Clamp for Laparoscopic Procedures
1 Per Box

Non-Vented/Topical Regulators

Designed for use with our topical/open-field gas-assist biomaterial applicators. FibriJet Regulators control pressure of medical grade inert gases/CO2 for applying materials in topical and open-field surgical procedures. The instrument panel is easy to read. A quick connect luer fitting ensures correct setup. The foot pedal allows for easy on/off of gas flow during procedures. An optional adjustable pole clamp is also available for purchase separately.

FibriJet SA-6030

SA-6030
FibriJet Topical Regulator, DISS
Medical Air Connection
1 Per Box

FibriJet SA-6031

SA-6031
FibriJet Topical Regulator, DISS
Carbon Dioxide (CO2) Connection
1 Per Box

Optional Accessories

FibriJet SA-6040

SA-6040
FibriJet Regulator Pole Clamp for SA-6030
1 Per Box

Procedure Kits

Procedure kits simplify and streamline setup for the application of liquid biomaterials by providing ease-of-use, convenience and efficiency in one package.

FibriJet SA-4400

SA-4400
Applicator Procedure Kit, 11:1 Ratio
5 Per Box

Each sterile kit includes:

  • Two FibriJet 11:1 applicator assemblies (four syringes, two syringe holders, two plunger links)
  • One procedure tray
  • Three removable med cups with lids and labels
  • Applicator tips sold separately
FibriJet SA-4460

SA-4460
Our most popular kit!
Dual Spray Applicator Procedure Kit, 11:1 Ratio
5 Per Box

Each sterile kit includes:

  • Two FibriJet 11:1 applicator assemblies (four syringes, two syringe holders, two plunger links)
  • One procedure tray
  • Three removable med cups with lids and labels
  • Two dual spray tips (SA-3660)
FibriJet SA-6111

SA-6111
Gas-Assisted Procedure Kit, 11:1 Ratio
5 Per Box

Each sterile kit includes:

  • One FibriJet 11:1 applicator assembly (two syringes, one syringe holder, one plunger link)
  • Gas-assisted spray tip (SA-3651)
  • Gas inlet tubing with sterile filter
  • One procedure tray
  • Three removable med cups with lids and labels
  • NOTE: Gas regulator required, sold separately

Rx Only
80004 Rev C 2016-07
