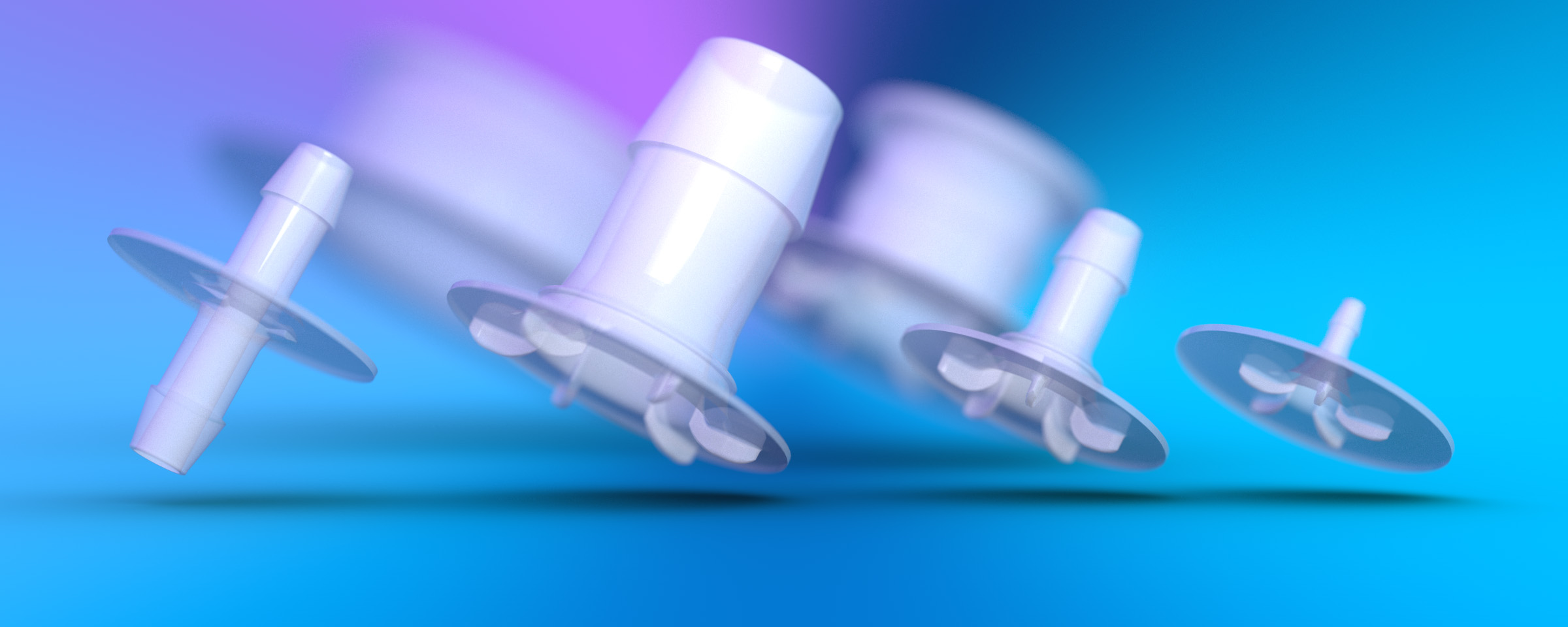

BioProcessing Fittings Bag Ports

Bag Ports

Innovative Parabolic Lead and Alignment Ribs

Nordson MEDICAL features an advanced series of ports for the single-use bags used to transfer media and drug compounds in the biopharmaceutical industry. Value Pharma™ resin, designed for heat sealing with polyethylene bags, holds credentials that many manufacturers deem fundamental, such as animal derivative free qualification and USP Class VI certification. The resin then goes even further to provide a strong, 24-hour resistance to alcohol stress cracking. RENOLIT SOLMED Granuflex 4301 resin demonstrates lower leachable levels and high purity.

The most notable of the bag ports' specifications are the parabolic lead and the alignment ribs. These two features, respectively, reduce the amount of time it takes to drain a bag by up to 24 percent and improve flow dynamics through the port. They promote a uniform flow by guiding the product into a consistent, rotational path while reducing flow separation from the wall.

Nordson MEDICAL Provides a Comprehensive Line of Bag Ports

Nordson MEDICAL is proud to announce the addition of a 4-inch bag port to its comprehensive high-tech series. These 4-inch bag ports are specifically designed for use with powder and mixing applications and made with Value Pharma™ resin. This resin material, designed for heat sealing with polyethylene bags, holds credentials that many manufacturers deem fundamental, such as animal derivative free qualification and USP Class VI certification.

We now offer a full line of TC style ports, hose barb ports, and dual barb options. In some cases two material options are available two meet customers’ extractables and material of construction needs.

The resin used to make our comprehensive line of bag ports then goes even further to provide a strong, 24-hour resistance to alcohol stress cracking.

Features & Benefits

  • Innovative parabolic lead reduces drain time by 17% to 24%
  • Alignment ribs improve fluid dynamics through port
  • Compliant with ASME BPE ferrule specifications
  • Compatible with leading industry single-use bags
  • Materials meet USP Class VI criteria
  • Resins ensure heat sealing with polyethylene bags
  • Animal-free materials
Visit Online Store

Bag Ports Technical Information

Materials
  • Value Pharma™ resin (Polyethylene)
    • Resistant to alcohol stress-cracking
  • RENOLIT SOLMED Granuflex 4301 resin (Polyethylene)
    • Lower leachable levels & high purity
Barb Sizes
  • 1/8" (3.2 mm) to 1" (25.4 mm)
Sanitary TC Port Sizes
  • 1-1/2" (38.1 mm) and 3" (76.2 mm)
Flow Rate
  • 8.37 gpm (3.78 L/min)
Test Data
  • Flow test results
  • Validation test results

Opposing Barb Ports (Dip Tubes)

Don't Be Opposed to Opposing Barb Ports

  • Easy to heat-seal into film material
  • Can be used in filling applications
  • Well-suited to work with sensors
  • Works great with silicone & TPE tubing
  • Better tube retention
  • Animal-free materials
  • Materials meet USP Class VI criteria
Visit Online Store

Technical Information - Opposing Barb Ports

Materials
  • Value Pharma™ resin (Polyethylene)
    • Resistant to alcohol stress-cracking
  • RENOLIT SOLMED Granuflex 4301 resin (Polyethylene)
    • Lower leachable levels & high purity
Sizes
  • 3/16" (4.8 mm) to 3/4" (19.0 mm)
Barb Size
  • 600 Series
